Common Problems Associated with PS3 (Slim) Blu-Ray Drive Controller Board (PCB)

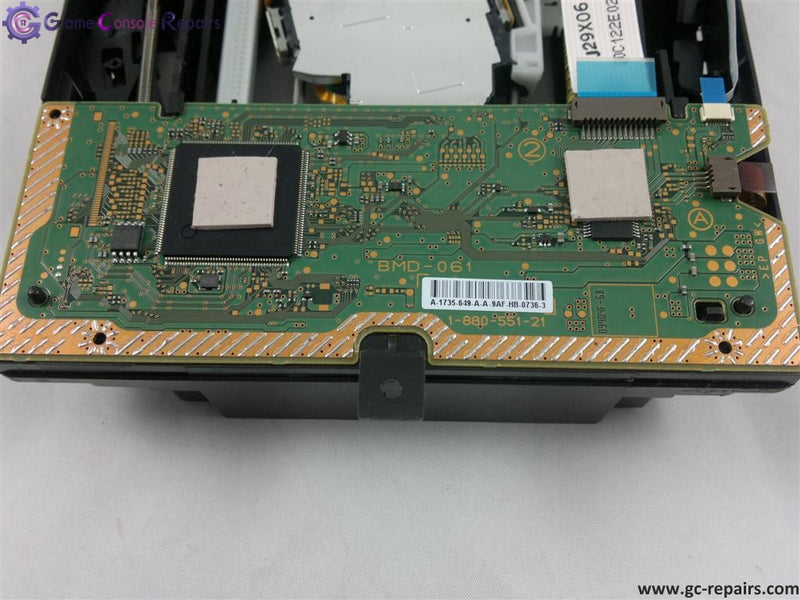

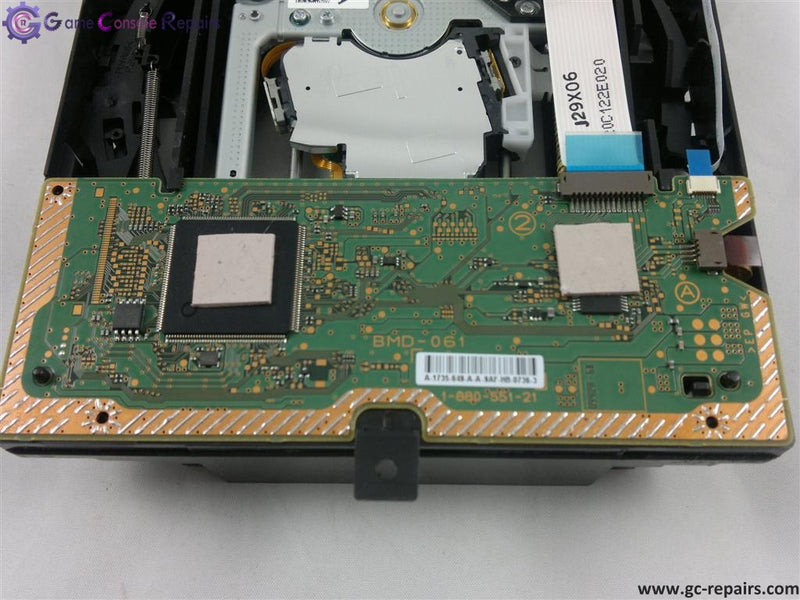

Blu-Ray Drive Controller Board (PCB)

1. Disc Read Errors:

   • Symptom: The console fails to read Blu-ray discs, DVDs, or CDs.
   • Cause: A faulty or damaged controller board can prevent proper disc reading.
   • Solution: Replacing or repairing the controller board can restore disc reading functionality.

2. No Power to Blu-Ray Drive:

   • Symptom: The Blu-ray drive does not power on or respond.
   • Cause: Damaged or faulty components on the controller board.
   • Solution: Replacing the defective controller board components or the entire board.

3. Disc Eject Issues:

   • Symptom: Discs get stuck in the drive or fail to eject properly.
   • Cause: Faulty signals from the controller board to the drive mechanism.
   • Solution: Repairing or replacing the controller board to ensure proper communication.

4. Intermittent Operation:

   • Symptom: The Blu-ray drive works sporadically or fails intermittently.
   • Cause: Loose connections or damaged traces on the controller board.
   • Solution: Securing connections and repairing or replacing the controller board.

5. Error Messages:

   • Symptom: The console displays error messages related to the Blu-ray drive.
   • Cause: Malfunctioning components or firmware issues on the controller board.
   • Solution: Updating the firmware or replacing the controller board.

Remarry Blu-Ray Drive Controller Board

1. Drive Not Recognized:

   • Symptom: The console does not recognize the Blu-ray drive after replacement.
   • Cause: The new drive controller board needs to be remarried to the console.
   • Solution: Performing the remarry process to link the new controller board with the console.

2. Playback Issues:

   • Symptom: The console fails to play Blu-ray discs or DVDs.
   • Cause: Incomplete or incorrect remarry process.
   • Solution: Ensuring the remarry process is correctly followed and completed.

3. System Errors:

   • Symptom: The console displays system errors related to the Blu-ray drive.
   • Cause: Mismatch between the console and the new controller board.
   • Solution: Remarrying the Blu-ray drive controller board to the console to ensure compatibility.

4. Firmware Incompatibility:

   • Symptom: The drive does not function correctly after a firmware update.
   • Cause: The new controller board's firmware is not compatible with the console's firmware.
   • Solution: Updating both the console and the controller board firmware to compatible versions.

Damaged Blu-Ray Drive Daughter Board

1. Disc Read Failure:

   • Symptom: The console fails to read any discs.
   • Cause: A damaged daughter board affecting the drive's ability to read discs.
   • Solution: Replacing or repairing the daughter board to restore disc reading capability.

2. Drive Not Spinning:

   • Symptom: The inserted disc does not spin inside the drive.
   • Cause: Damage to the daughter board affecting the drive's motor control.
   • Solution: Repairing or replacing the damaged daughter board to fix motor control issues.

3. Connectivity Issues:

   • Symptom: The console does not detect the Blu-ray drive.
   • Cause: Damaged connectors or traces on the daughter board.
   • Solution: Repairing or replacing the damaged connectors or traces on the daughter board.

4. Frequent Freezing or Skipping:

   • Symptom: Discs frequently freeze or skip during playback.
   • Cause: A malfunctioning daughter board causing data transmission errors.
   • Solution: Repairing or replacing the daughter board to ensure smooth data transmission.

5. Firmware Corruption:

   • Symptom: The drive stops functioning correctly after a firmware update.
   • Cause: Corrupted firmware on the daughter board.
   • Solution: Reflashing or updating the firmware on the daughter board to a stable version.
