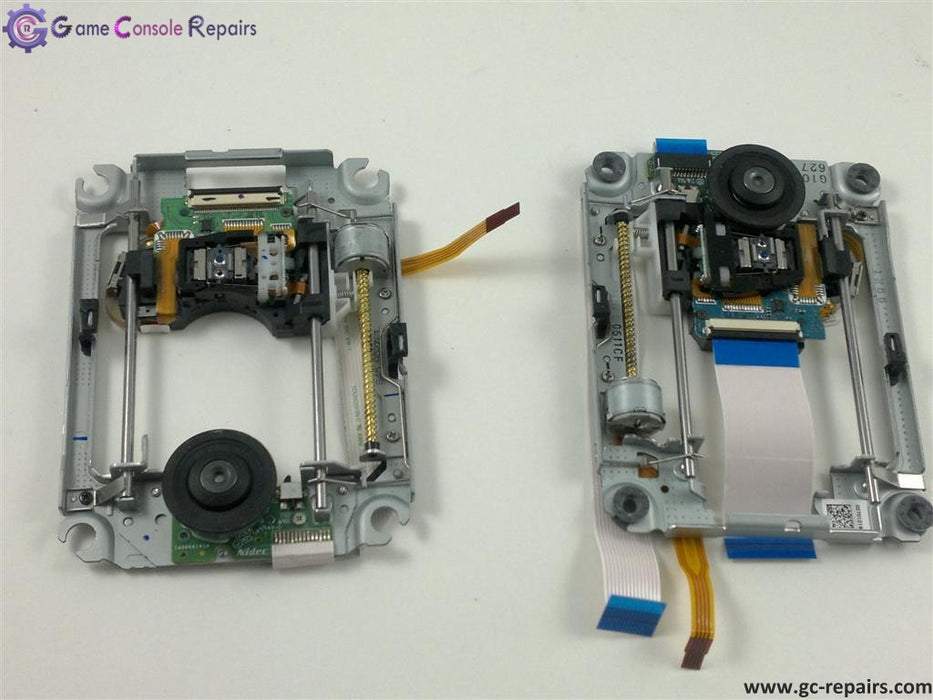

Common Problems Associated with PS3 (Slim) Laser Mechanism

1. Disc Not Reading

• Problem: The console fails to read any disc (games, Blu-rays, DVDs).
• Possible Causes:
  • Faulty laser lens.
  • Misaligned laser mechanism.
  • Dirty or damaged lens.
• Solutions:
  • Clean the Lens:
    1. Use a lens cleaning disc designed for Blu-ray players.
    2. Disassemble the PS3 (voids warranty) and carefully clean the lens with a cotton swab and isopropyl alcohol.
  • Replace the Laser Lens:
    1. Purchase a compatible replacement laser lens for the PS3 Slim.
    2. Follow detailed online guides or videos to disassemble the console and replace the lens.
  • Realign the Laser Mechanism:
    1. Disassemble the console to access the laser mechanism.
    2. Adjust the laser position and ensure it moves smoothly along its track.

2. Disc Reading Errors

• Problem: The console attempts to read the disc but fails, often showing error messages.
• Possible Causes:
  • Misaligned or faulty laser mechanism.
  • Dirt or dust on the lens.
• Solutions:
  • Realign the Laser Mechanism:
    1. Disassemble the console and check the alignment of the laser mechanism.
    2. Adjust the mechanism to ensure proper alignment.
  • Clean the Lens: Follow the same cleaning process as described above.
  • Replace the Laser Mechanism: If realignment and cleaning do not work, replacing the entire laser mechanism might be necessary.

3. Disc Not Spinning

• Problem: The disc doesn't spin when inserted into the console.
• Possible Causes:
  • Faulty spindle motor.
  • Issues with the disc drive mechanism.
  • Faulty laser lens preventing the spindle motor from activating.
• Solutions:
  • Check Spindle Motor:
    1. Disassemble the console and check if the spindle motor is functioning.
    2. If the motor is faulty, it may need to be replaced.
  • Inspect Disc Drive Mechanism:
    1. Check for any obstructions or issues with the drive mechanism.
    2. Repair or replace the drive mechanism if necessary.
  • Replace the Laser Lens: Sometimes, the lens failure can prevent the disc from spinning. Replace the lens as a potential solution.

4. No Video or Audio Output During Disc Playback

• Problem: The console does not display video or produce audio when a disc is inserted.
• Possible Causes:
  • Faulty laser mechanism.
  • Issues with the HDMI or AV connections.
  • Console software issues.
• Solutions:
  • Check Connections:
    1. Ensure HDMI or AV cables are securely connected.
    2. Try different cables or ports.
  • Update Console Software:
    1. Ensure the PS3 firmware is up to date.
    2. Perform a system update if necessary.
  • Replace the Laser Mechanism: If the laser mechanism is faulty, replacing it might restore proper playback functionality.

5. Frequent Freezing During Disc Playback

• Problem: The console freezes or stutters during disc playback.
• Possible Causes:
  • Dirty or damaged lens.
  • Overheating of the console.
  • Faulty laser mechanism.
• Solutions:
  • Clean the Lens: Follow the cleaning process as described above.
  • Ensure Proper Ventilation:
    1. Place the console in a well-ventilated area.
    2. Clean the vents and fan to ensure proper airflow.
  • Replace the Laser Mechanism: If the problem persists after cleaning and ensuring proper ventilation, replacing the laser mechanism may be necessary.

6. No Disc Recognition (After Laser Mechanism Replacement)

• Problem: The console does not recognize discs after replacing the laser mechanism.
• Possible Causes:
  • Incorrect installation of the replacement mechanism.
  • Faulty replacement mechanism.
  • Incompatibility of the replacement mechanism with the PS3 Slim model.
• Solutions:
  • Recheck Installation:
    1. Disassemble the console and ensure the laser mechanism is installed correctly.
    2. Check all connections and seating of the laser assembly.
  • Test Replacement Mechanism:
    1. Verify that the replacement mechanism is compatible with the PS3 Slim model.
    2. If necessary, try another replacement mechanism to rule out a defective part.
  • Reset the Console:
    1. Restore the PS3 to default settings via the system menu.
    2. Reinstall any necessary firmware updates.

Preventive Measures

• Regular Cleaning: Periodically clean the console’s vents and disc drive to prevent dust buildup.
• Proper Ventilation: Ensure the console is placed in a well-ventilated area to prevent overheating.
• Handle Discs Properly: Always handle discs by the edges to avoid smudges and scratches.
• Use High-Quality Discs: Use high-quality, scratch-free discs to minimize strain on the laser lens.
• Avoid Frequent Power Cycling: Avoid turning the console on and off repeatedly in a short period, which can strain the lens and drive mechanism.
