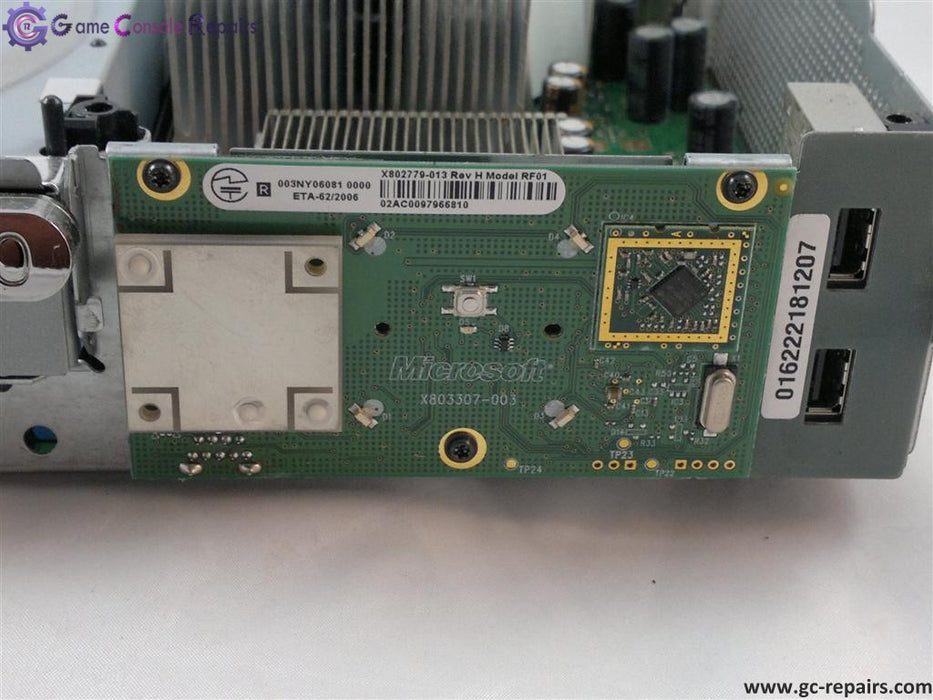

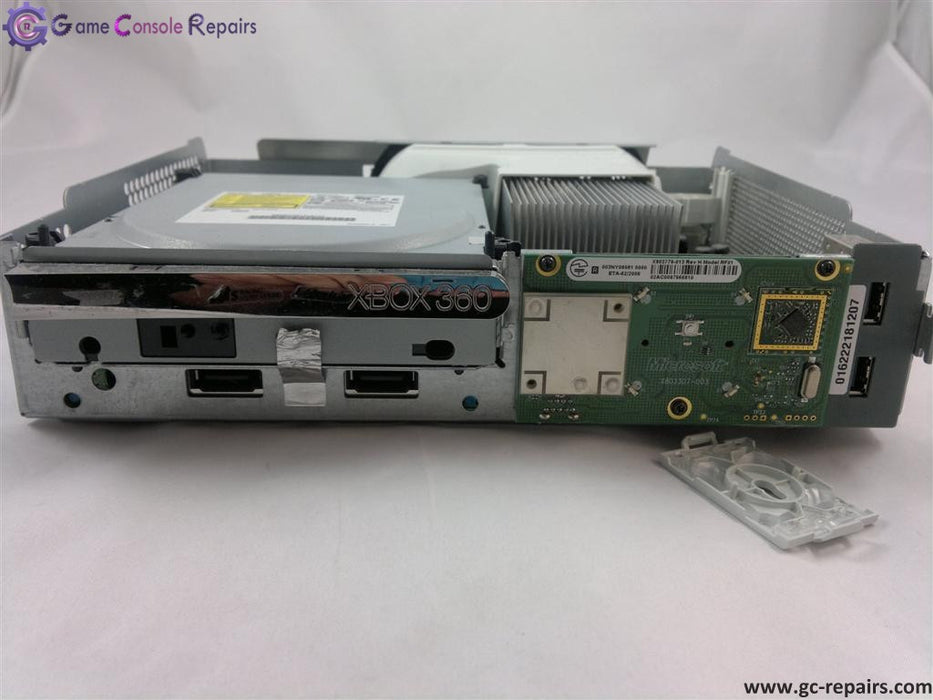

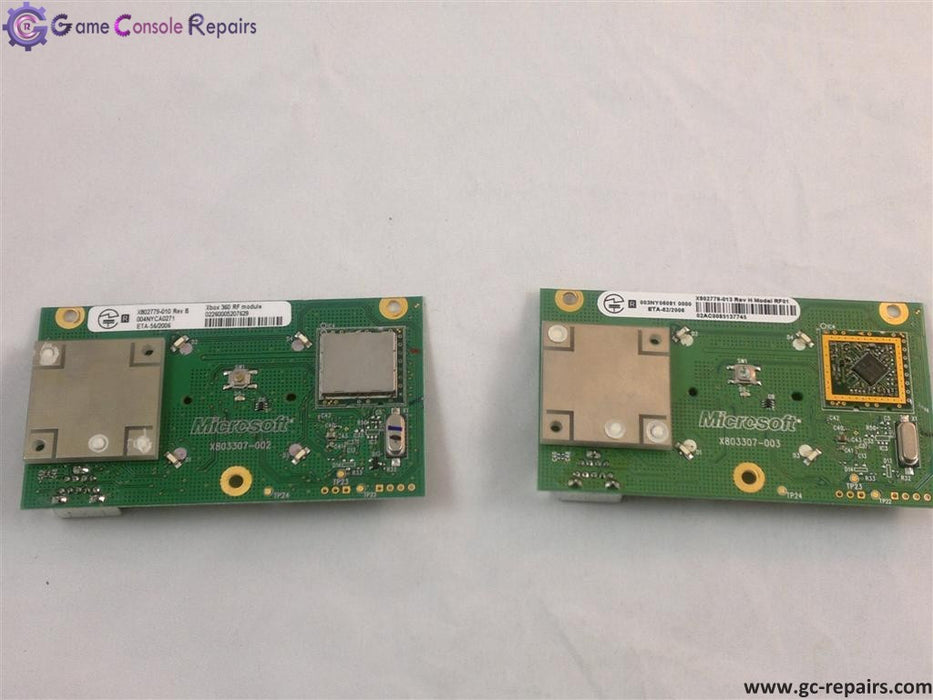

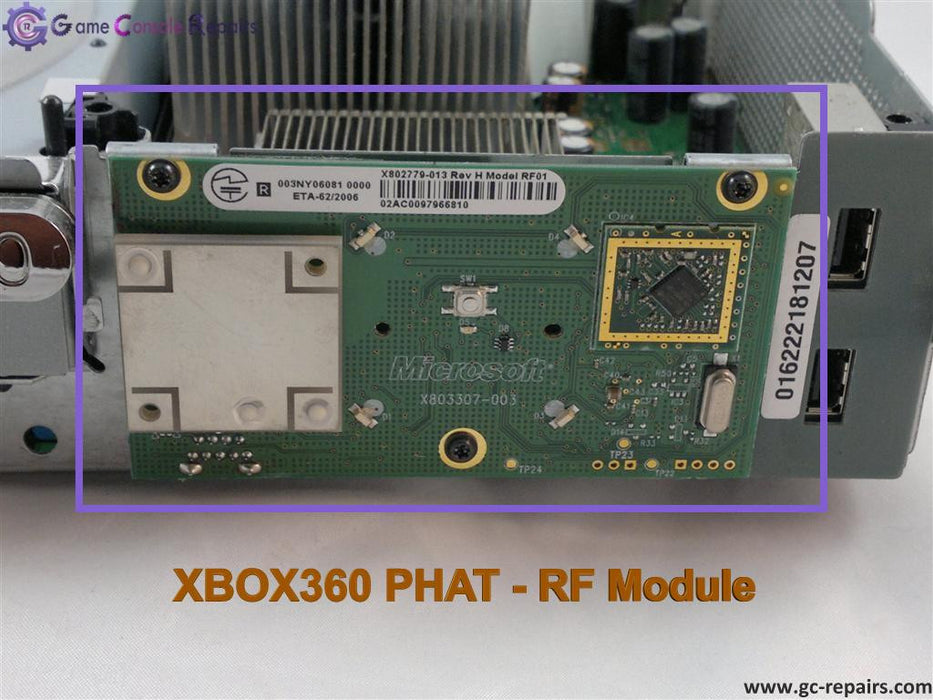

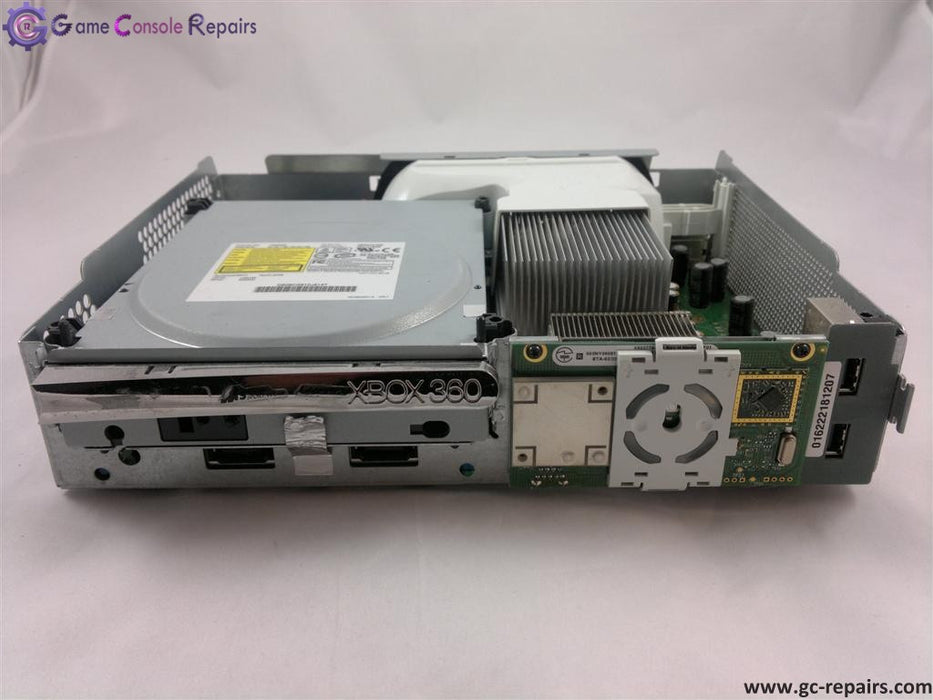

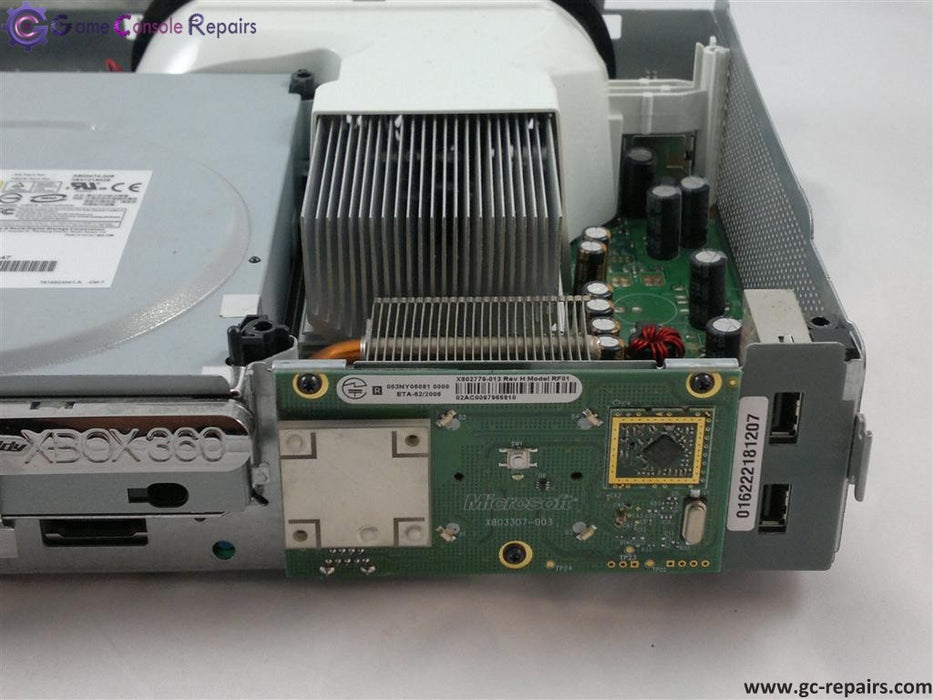

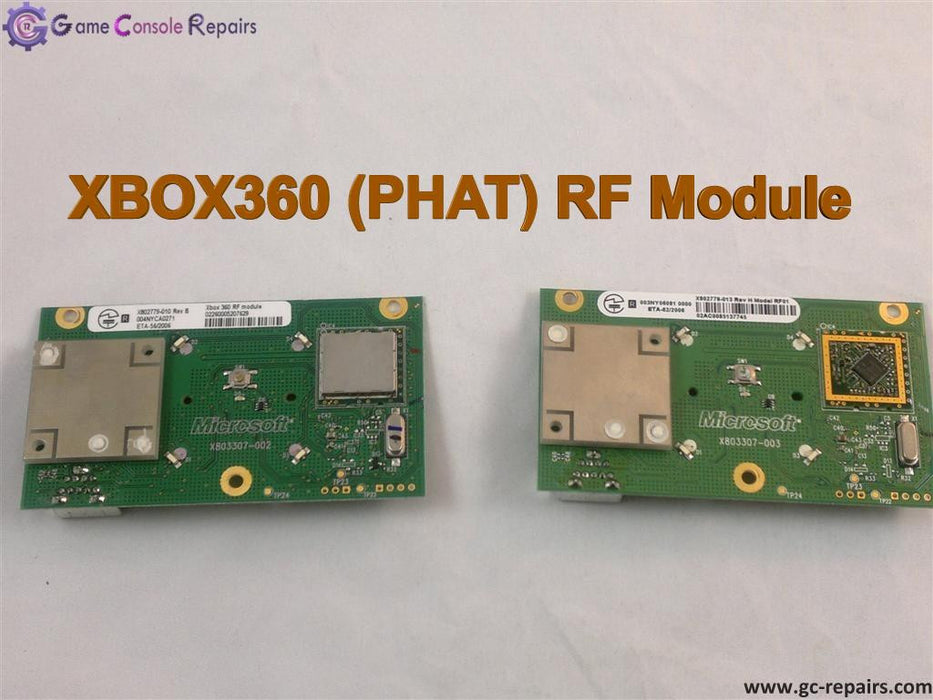

Common Problems, Causes, and Solutions with the Xbox 360 FAT RF Module - Unable to Power On

1. Problem: No Power Response from the Console

Cause:

• Faulty RF Module: The RF module, which handles the power-on function and wireless communication, may be defective.
• Power Supply Issues: The power brick or its connection to the console might be malfunctioning.

Solution:

• Replace the RF Module: Swap out the faulty RF module with a new or tested working one to restore power-on functionality.
• Check and Replace Power Supply: Ensure the power supply is functioning correctly. If faulty, replace it with a compatible power brick.

2. Problem: Intermittent Power Issues

Cause:

• Loose Connections: The connection between the RF module and the motherboard might be loose or corroded.
• Electrical Shorts: Short circuits or damaged traces on the RF module can cause intermittent power issues.

Solution:

• Secure Connections: Check and secure all connections between the RF module and the motherboard. Clean any corrosion present.
• Inspect for Shorts: Visually inspect the RF module for any signs of shorts or damaged traces and repair or replace the module as necessary.

3. Problem: Console Powers On but Immediately Shuts Down

Cause:

• Overheating: The RF module or other internal components might be overheating, causing the console to shut down to protect itself.
• Defective Components: Components within the RF module or related circuitry may be failing.

Solution:

• Improve Cooling: Ensure that the console’s cooling system is functioning correctly. Clean any dust and ensure proper airflow.
• Replace Defective Components: Identify and replace any defective components within the RF module or its circuitry.

4. Problem: No Response from Power Button

Cause:

• Damaged Power Button: The physical power button on the RF module might be damaged or unresponsive.
• Firmware Issues: Firmware corruption can cause the console not to respond to power-on attempts.

Solution:

• Replace or Repair Power Button: If the power button is damaged, replace it or the entire RF module if necessary.
• Update/Reinstall Firmware: Attempt to update or reinstall the console’s firmware to resolve any software-related power issues.

5. Problem: Power On but No Video Output

Cause:

• RF Module Interference: The RF module might be causing interference with other components, preventing video output.
• HDMI/AV Cable Issues: Faulty cables can lead to no video output even when the console powers on.

Solution:

• Isolate RF Module: Temporarily disconnect the RF module and see if the video output issue persists. If the problem resolves, the RF module may need to be replaced.
• Check/Replace Cables: Test with different HDMI or AV cables to rule out cable issues.

6. Problem: Unresponsive Controllers

Cause:

• RF Module Failure: The RF module, which handles wireless controller connections, might be failing.
• Sync Issues: The console might have trouble syncing with wireless controllers.

Solution:

• Replace RF Module: If the module is failing, replace it to restore wireless controller functionality.
• Resync Controllers: Follow the procedure to resync controllers to the console. If unsuccessful, check the RF module.

Book Now

The Xbox 360 FAT RF module plays a critical role in powering on the console and managing wireless connections. Common issues with this module include no power response, intermittent power problems, immediate shutdowns, unresponsive power buttons, no video output, and unresponsive controllers. Solutions involve checking and securing connections, replacing defective components, improving cooling, updating firmware, and ensuring proper cable functionality. Proper diagnosis and repair can restore the console's functionality and prolong its lifespan
